FITS: 2024+ Tesla Model 3

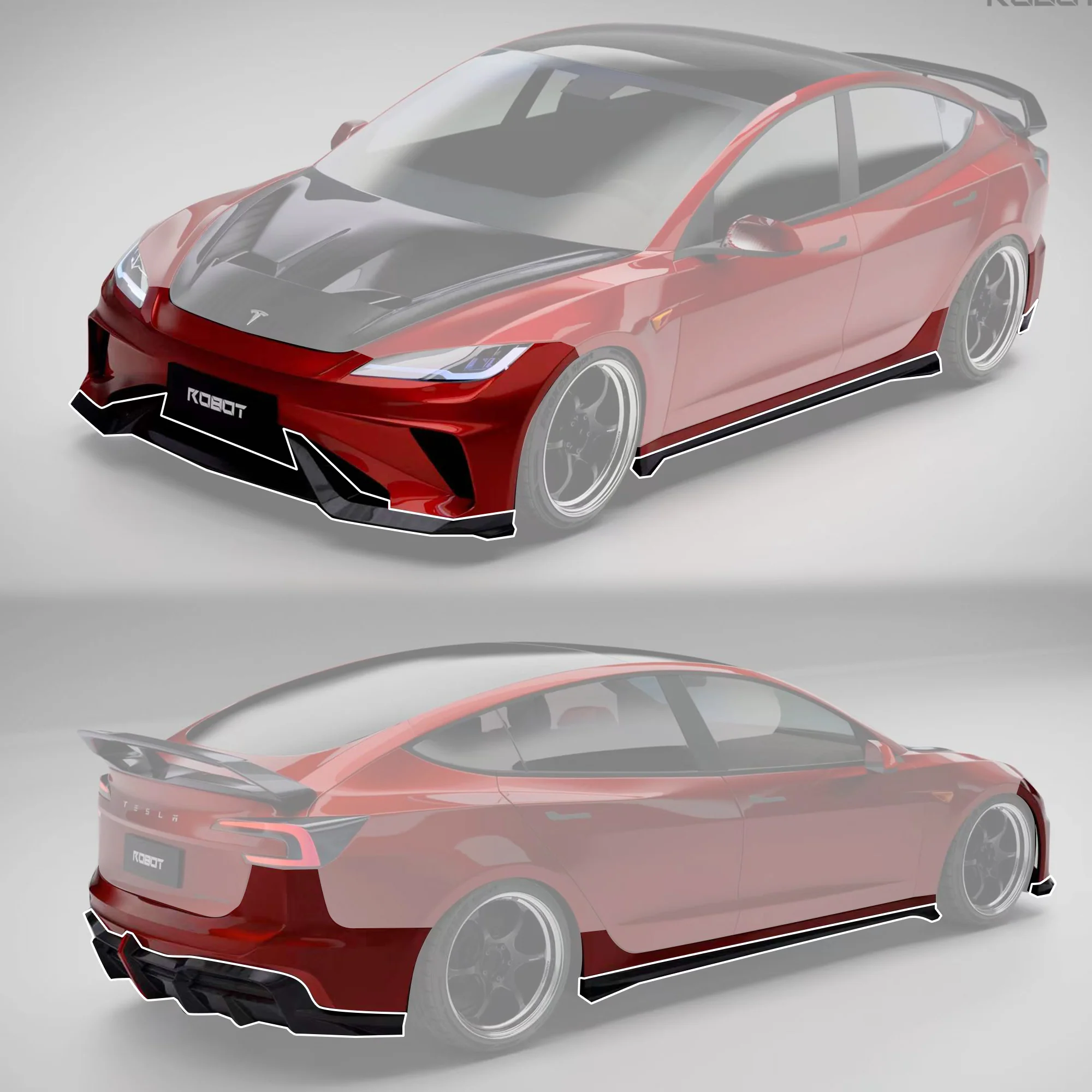

FRP Kit Contains:

• FRP Front Bumper & Lip
• FRP Side Skirts
• FRP Bumper & Rear Diffuser (Performance Model needs Long Range Undertray)
• Free Sea Freight Shipping

Carbon Kit Contains:

• FRP Front Bumper & Carbon Front Lip & Grill
• FRP Side Skirts + Carbon Inlay
• FRP Bumper & Carbon Rear Diffuser (Performance Model needs Long Range Undertray)
• Free Sea Freight Shipping

Addons & Upgrades (Configurable Below)

• FRP / Carbon Bonnet

• FRP / Carbon Spoiler (Multiple Options)


Choose the Configure Your Kit Option below to customise your order. If you'd like to order parts individually or mix and match parts from other styles please contact us and we will send a bespoke quote

Rear Bumper LED Light Wiring:

• • The bumper LED light requires wiring to the vehicle loom. (Since OEM reverse light is removed)

Light wiring colours:

• • Black – Ground
  • Red – Main white light power
  • White – Secondary light trigger
  • Yellow – Indicator signal (if used)
  • Green – Optional function (not used on all installs)

Example connection:

• • Vehicle Black → Black
  • Vehicle Yellow → Red
  • Vehicle Blue → White

Third Brake Light Wiring

• • Disconnect the OEM tail light connector
  • Plug the adaptor into the tail light
  • Plug the original vehicle connector into the adaptor
  • This allows the brake light to piggy-back power from the factory wiring
  • The brake light cable must be routed through the tailgate to the bumper.
  • The wire will need to be passed through the factory tailgate grommet to reach the rear bumper.

Important

• • Professional installation recommended
  • Dry-fit install before paint
  • Wiring knowledge required
  • Test all lights before final assembly
  • Do not cut vehicle wiring unless necessary
