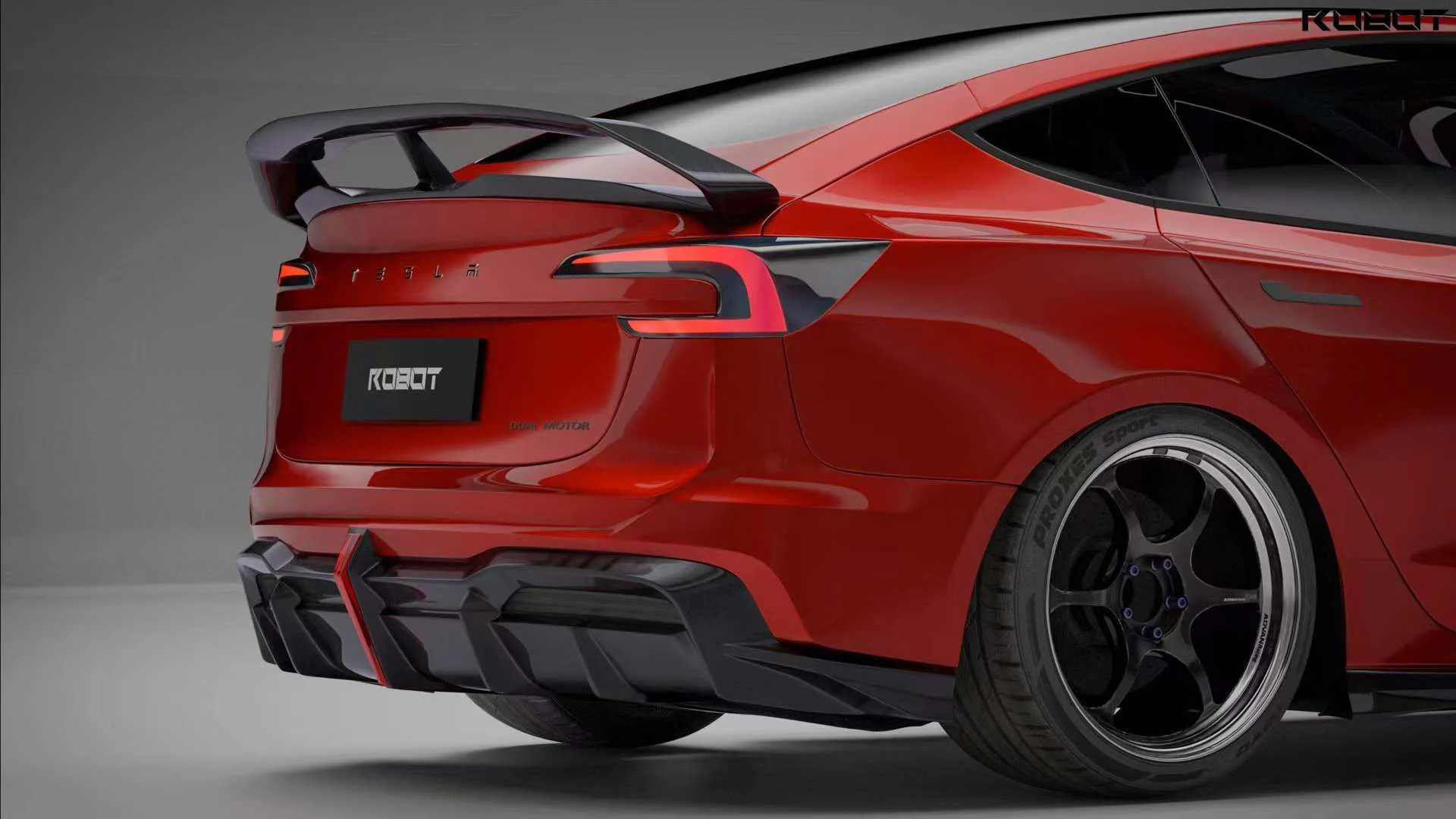

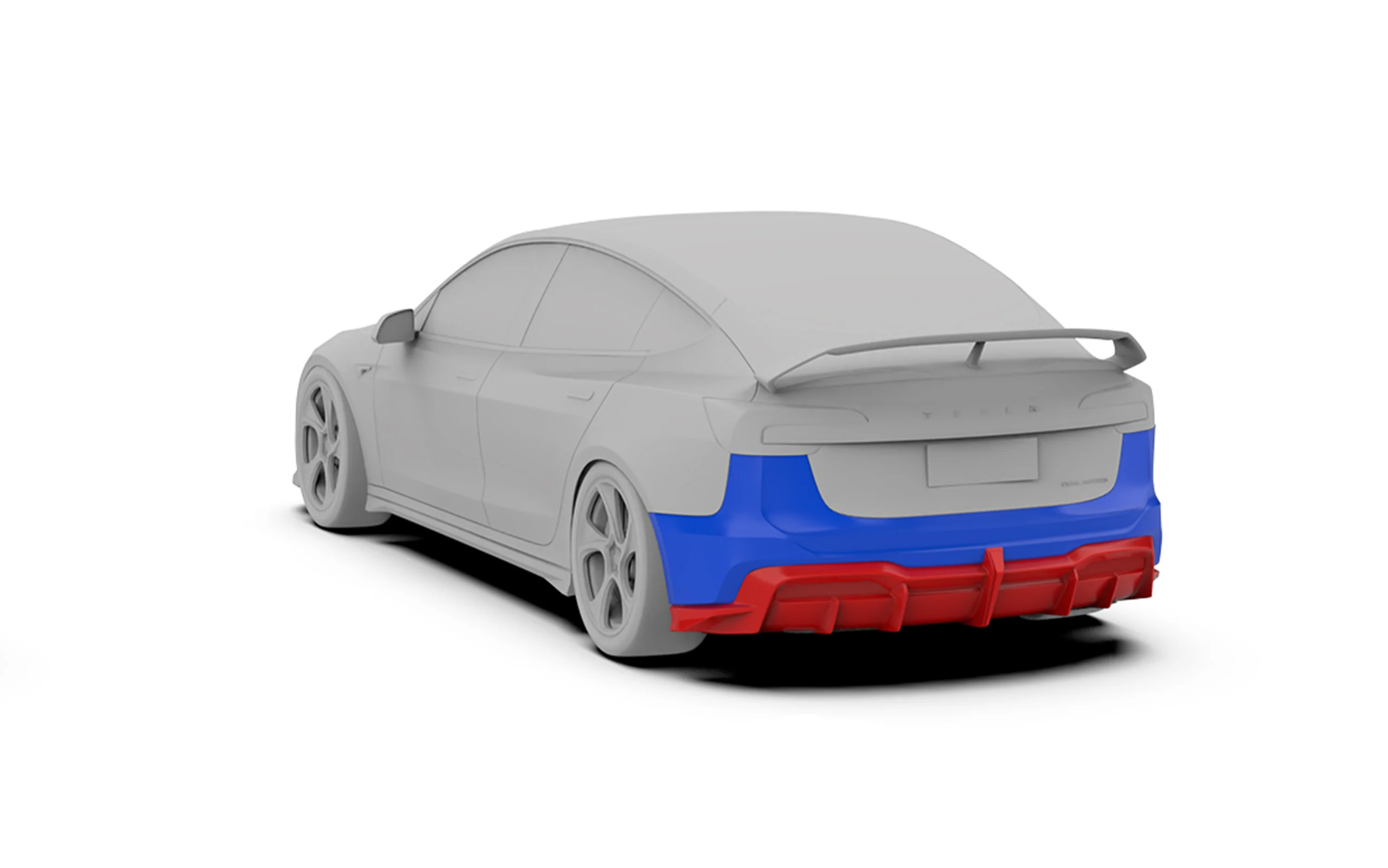

Fits: Standard and Long Range Models.

Performance may need slight alterations (Long Range Undertray)

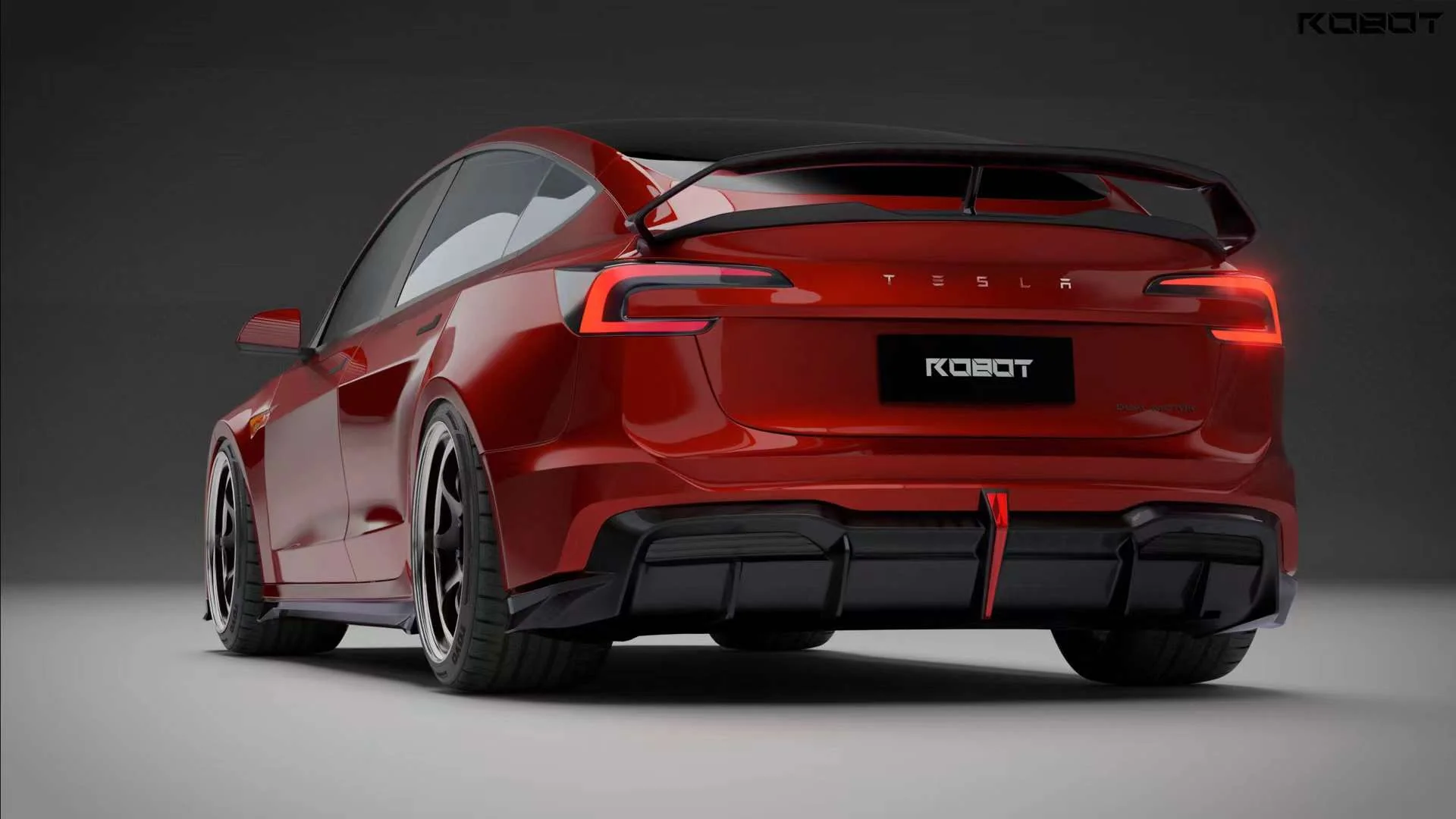

Rear Bumper LED Light Wiring:

• • The bumper LED light requires wiring to the vehicle loom. (Since OEM reverse light is removed)

Light wiring colours:

• • Black – Ground
  • Red – Main white light power
  • White – Secondary light trigger
  • Yellow – Indicator signal (if used)
  • Green – Optional function (not used on all installs)

Example connection:

• • Vehicle Black → Black
  • Vehicle Yellow → Red
  • Vehicle Blue → White

Third Brake Light Wiring

• • Disconnect the OEM tail light connector
  • Plug the adaptor into the tail light
  • Plug the original vehicle connector into the adaptor
  • This allows the brake light to piggy-back power from the factory wiring
  • The brake light cable must be routed through the tailgate to the bumper.
  • The wire will need to be passed through the factory tailgate grommet to reach the rear bumper.

Important

• • Professional installation recommended
  • Dry-fit install before paint
  • Wiring knowledge required
  • Test all lights before final assembly
  • Do not cut vehicle wiring unless necessary
